DC/DC Converter PSU 24V/48V/400W
Price on request
- DC/DC Converter 24V/48V/400W
- Input: 24VDC vehicle battery voltage
- Output: Mobile supply of a 48VDC radio system
- Protected against short circuit, overload, overvoltage, input polarity reversal and undervoltage
- For robust outdoor use

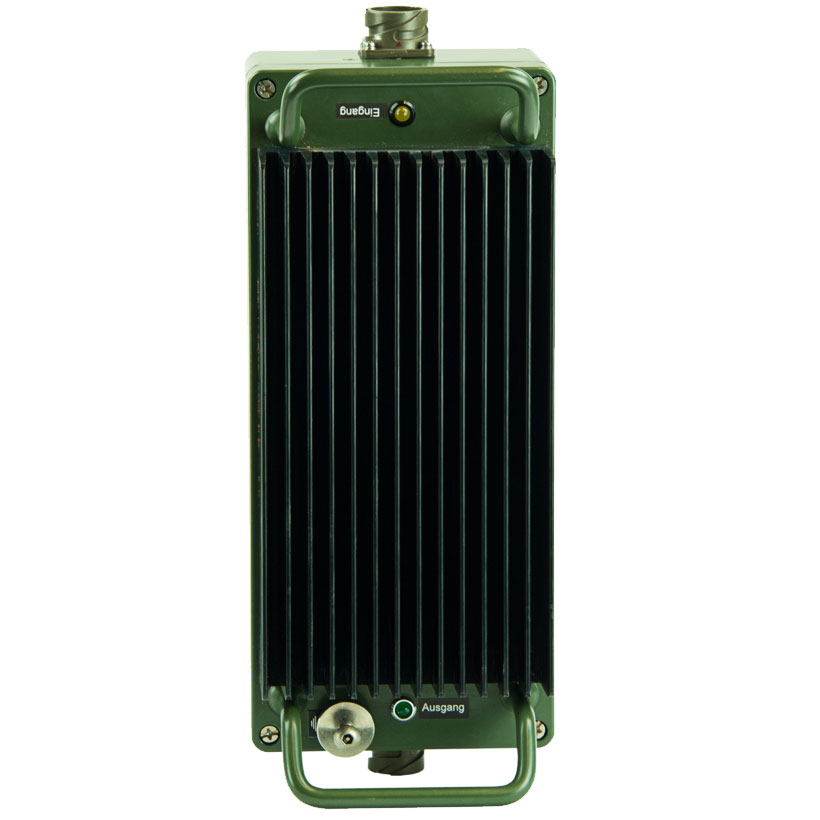

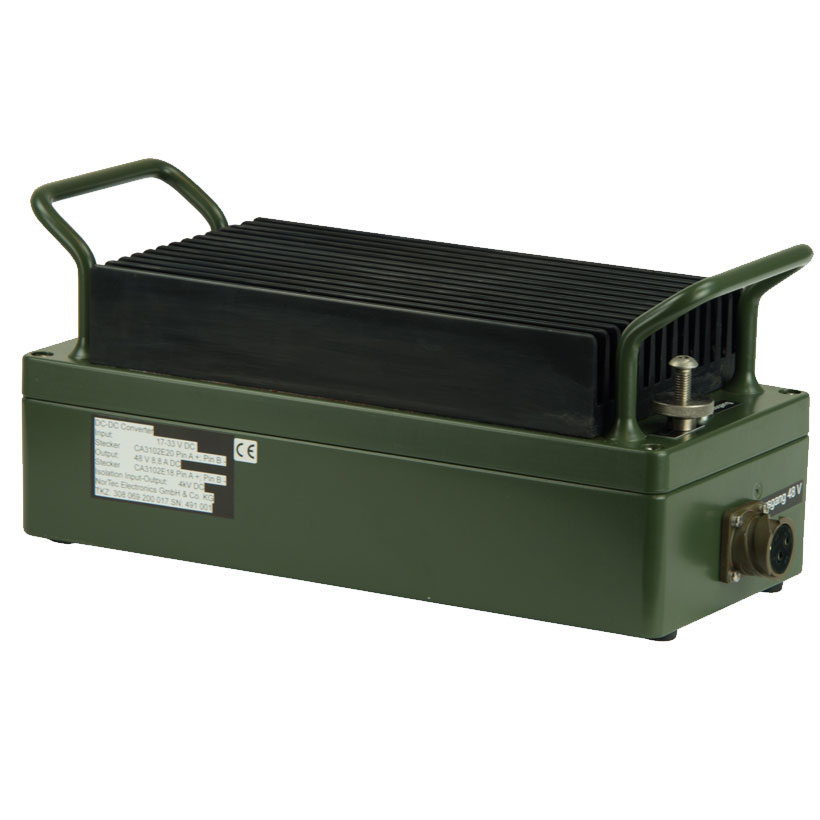

The DC/DC converter PSU converts a 24VDC truck battery voltage to 48V DC. The converter is used to provide mobile power to a radio system with approx. 400 W of power.
The central element of the DC/DC converter PSU is the RSD-500B-48 converter from Mean Well. This is used as an OEM and its technical data is adopted.
The appropriate infrastructure in a robust housing was developed around this OEM converter for military use.
|
DC/DC Converter PSU 24V/48V/400W (German, pdf, 0.5 MB) |
Version 11.2023 |
DC/DC Converter - Accessoires

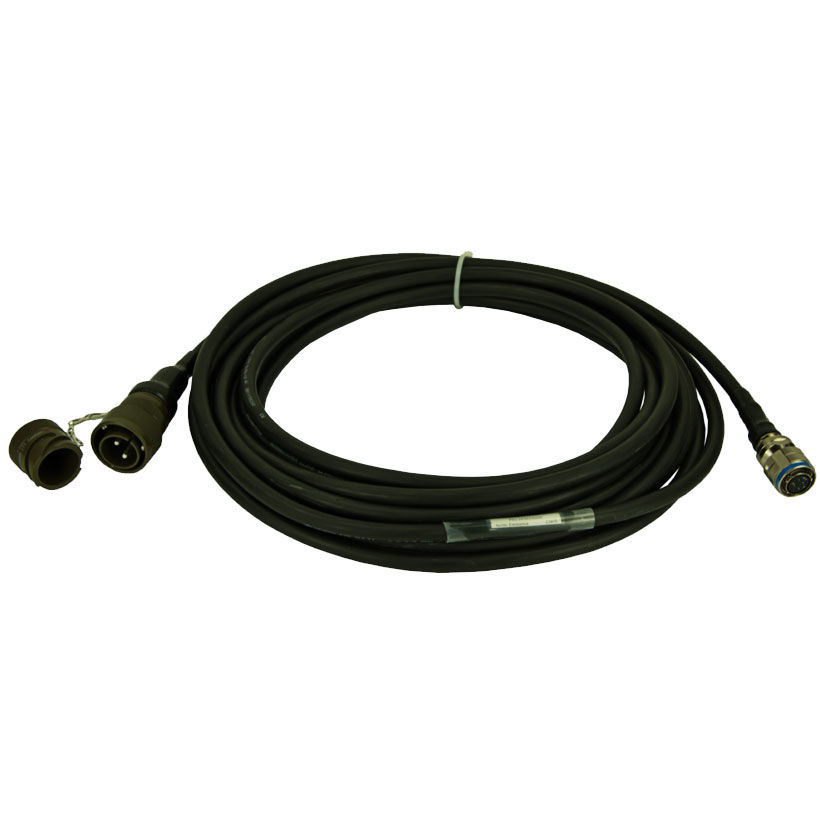

- Vehicle connection input 24 V, 10 m
- NATO external start plug
- for DC/DC converter 24V/48V/400W
Price on request
- Connection cable output 48 V, 10.0 m
- with Amphenol D38999
- for AC/DC converter 230V/48V/2,500W
Price on request
